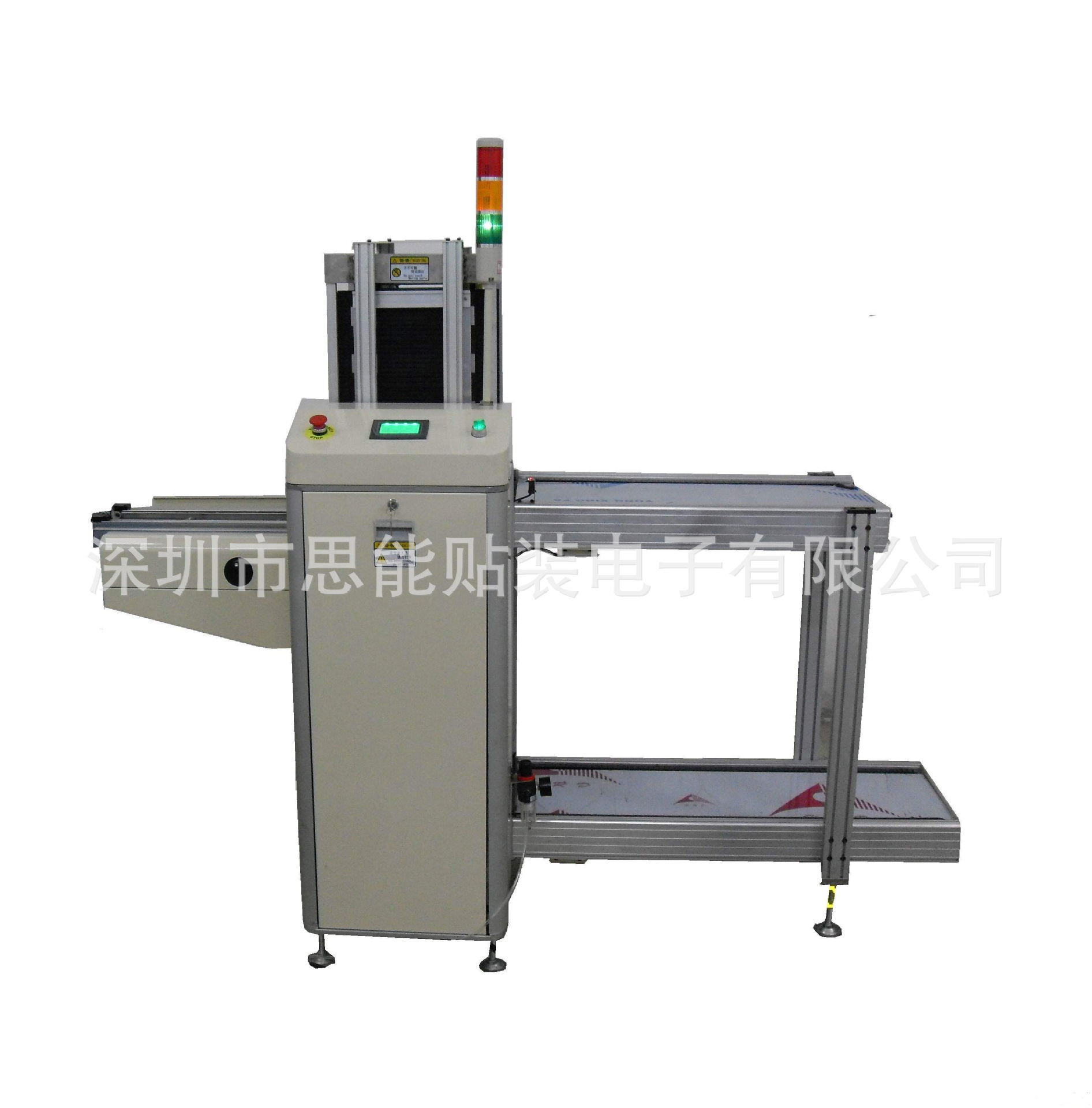

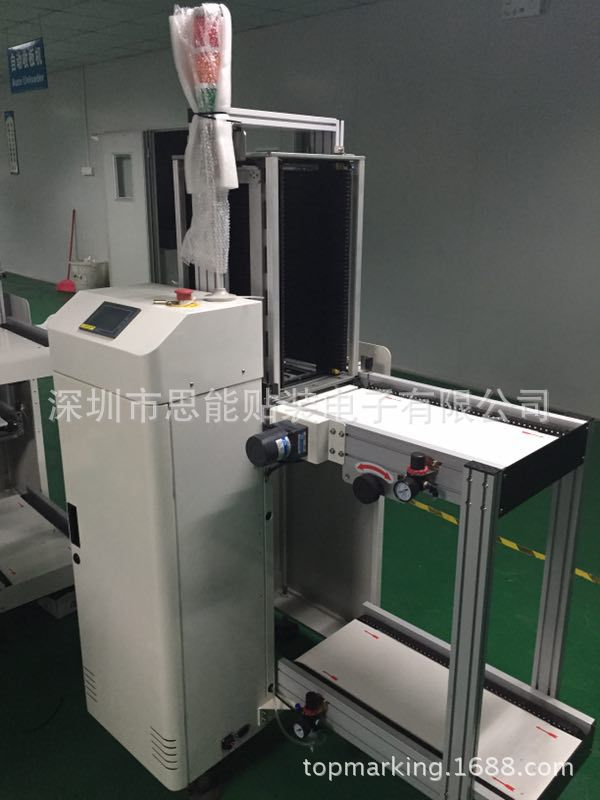

SMT Equipment GS250ONULD Board Loader Unloader

Specification

1)Size:L1500*W1500*H1270mm
2)Special aluminum rail and special type plastic chain
3)90W brake motor drive adopts ball screw to make Magazine step up and down
4)With one conveyor set of 0.7M long push plate
5)Pneumatic clamp structure
6)Magazine size is (L)355*(W)320*(H)570mm
7)PCB max size is (L)350mm*(W)250mm
8)Direction: right-left ,left-right
9)The lift platform pitch is chosen is 10, 20, 30, 40,50
10)MITSUBISHI PLC programmable controller control
11)Automatic select good and bad board function
12)The control panel is true color touch screen display control.
13)Power supply: 220V 50HZ
14)Air supply: 0.4-0.6MPa
15)One set of electric control box
